KAF87減速機加電機重量：

KAF87減速機加0.75KW電機重量104KG，KAF87減速機加1.1KW電機重量108KG，KAF87減速機加1.5KW電機重量111KG，KAF87減速機加2.2KW電機重量120KG，KAF87減速機加3KW電機重量124KG，KAF87減速機加4KW電機重量135KG，KAF87減速機加5.5KW電機重量148KG，KAF87減速機加7.5KW電機重量161KG，KAF87減速機加11KW電機重量260KG，KAF87減速機加15KW電機重量223KG，KAF87減速機加18.5KW電機重量260KG，KAF87減速機加22KW電機重量273KG。

KAF87減速機加油量：可加齒輪潤滑油

KAF87減速機M4安裝形式加11.1L，KAF87減速機M3安裝形式加8.8L，KAF87減速機M2安裝形式加8.2L，KAF87減速機M1安裝形式加3.7L，KAF87減速機M5安裝形式加8L，KAF87減速機M6安裝形式加8L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

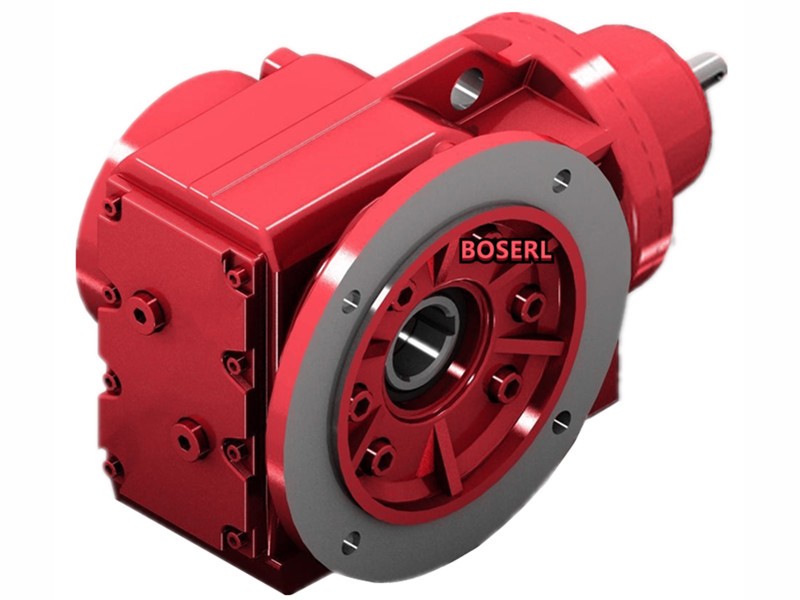

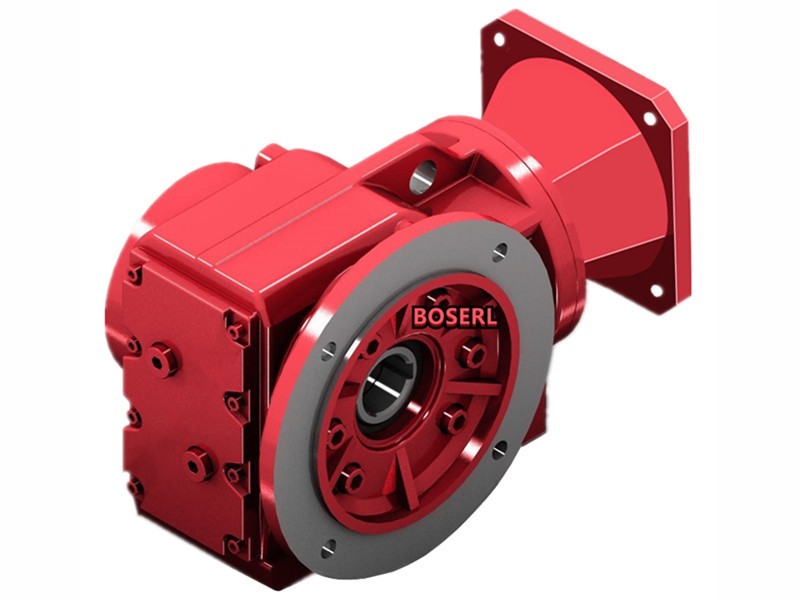

KAF87減速機實物圖：圖一為KAF87立式安裝形式直角空心軸螺旋錐齒輪減速機，圖二K87臥式安裝形式螺旋錐齒輪減速電機，圖三為KF87立式安裝形式實心軸輸出螺旋錐齒輪減速電機，圖四為KA87臥式安裝形式空心軸螺旋錐齒輪減速機。

KAF87減速機型號表示方法：

KAF87減速機型號結構KAF87-B11KW-4P-減速比-安裝形式-接線盒位置。

KAF87減速機性能參數表結構說明：Input Configuration代表輸入加置，C防雨罩，V強制冷卻風扇，RS逆止器，TF電機熱保護裝置，KAF87，K87，KF87，KA87減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置加自鎖功能。

KAF87減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向為:從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。直角減速機

KAF87減速機參數：

KAF87減速機輸出扭矩1300N.m,1400N.m,1500N.m,1800N.m,2000N.m,2100N.m,2200N.m,2300N.m,2500N.m,2600N.m,2700N.m（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）。

KAF87減速機減速比197.37比,174.19比,164.34比,147.32比,126.91比,115.82比,102.71比,86.34比,79.34比,70.46比,63比,56.64比,49.16比,44.02比,36.52比,31.39比,27.88比,24.92比,22.41比,19.45比,17.42比,16比,14.45比,12.56比,11.17比,10比,8.29比,7.21比

KAF87減速機輸出轉數7.1轉,8轉,8.5轉,9.5轉,11轉,12轉,14轉,16轉,18轉,20轉,22轉,25轉,28轉,32轉,38轉,45轉,50轉,56轉,62轉,72轉,80轉,88轉,97轉,111轉,125轉,140轉,169轉,194轉（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）。

KAF87減速機電機可加單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KAF87加0.75KW，KAF87加1.1KW，KAF87加1.5KW，KAF87加2.2KW，KAF87加3KW，KAF87加4KW，KAF87加5.5KW，KAF87加7.5KW，KAF87加11KW，KAF87加15KW，K87加18.5KW，K87加22KW。

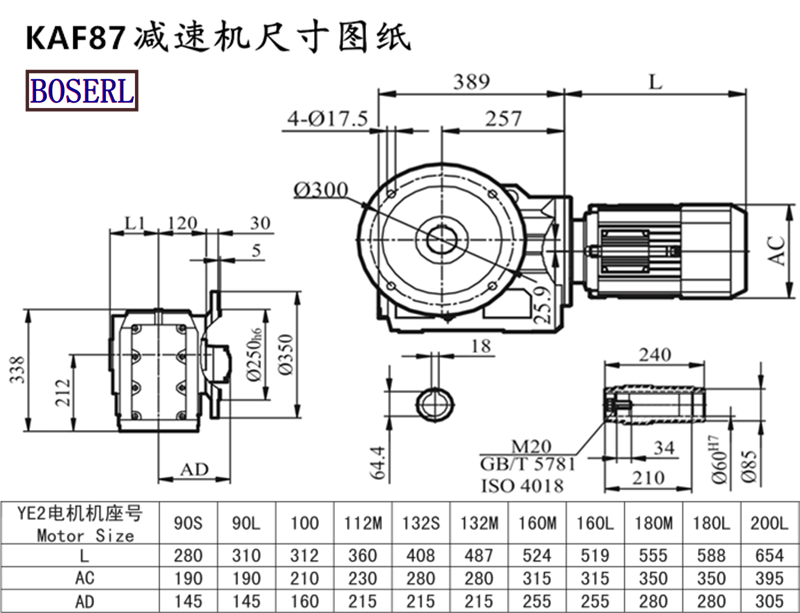

KAF87減速機外觀尺寸：輸出孔直徑Φ60+鍵4.4（可定做），高338*寬266（帶輸出法蘭）*長390

KAF87減速機型號：KAF87AQA80,KAF87AQA100,KAF87AQA115,KAF87AQA140,KAF87AQA160,KAF87AQA190,KAF87AQH80,KAF87AQH100,KAF87AQH115,KAF87AQH140,KAF87AQH160,KAF87AQH190,JRTKAF87-Y0.37KW,JRTKAF87-Y0.55KW,JRTKAF87-Y0.75KW,JRTKAF87-Y1.1KW,JRTKAF87-Y1.5KW,JRTKAF87-Y100M4,JRTKAF87-Y112M4,JRTKAF87-Y11KW,JRTKAF87-Y132M4,JRTKAF87-Y15KW,JRTKAF87-Y160M4,JRTKAF87-Y18.5KW,JRTKAF87-Y180M4,JRTKAF87-Y2.2KW,JRTKAF87-Y200M4,JRTKAF87-Y22KW,JRTKAF87-Y3KW,JRTKAF87-Y4KW,JRTKAF87-Y5.5KW,JRTKAF87-Y7.5KW,JRTKAF87-Y71M4,JRTKAF87-Y80M4,JRTKAF87-Y90M4,JRTKAF87-YEJ100M4,JRTKAF87-YEJ112M4,JRTKAF87-YEJ132M4,JRTKAF87-YEJ160M4,JRTKAF87-YEJ180M4,JRTKAF87-YEJ200M4,JRTKAF87-YEJ71M4,JRTKAF87-YEJ80M4,JRTKAF87-YEJ90M4,JRTKAF87-YS100M4,JRTKAF87-YS112M4,JRTKAF87-YS132M4,JRTKAF87-YS160M4,JRTKAF87-YS180M4,JRTKAF87-YS200M4,JRTKAF87-YS71M4,JRTKAF87-YS80M4,JRTKAF87-YS90M4,JRTKAF87-YVP100M4,JRTKAF87-YVP112M4,JRTKAF87-YVP132M4,JRTKAF87-YVP160M4,JRTKAF87-YVP180M4,JRTKAF87-YVP200M4,JRTKAF87-YVP71M4,JRTKAF87-YVP80M4,JRTKAF87-YVP90M4,JRTKAF87-YVPEJ100M4,JRTKAF87-YVPEJ112M4,JRTKAF87-YVPEJ132M4,JRTKAF87-YVPEJ160M4,JRTKAF87-YVPEJ180M4,JRTKAF87-YVPEJ200M4,JRTKAF87-YVPEJ71M4,JRTKAF87-YVPEJ80M4,JRTKAF87-YVPEJ90M4,EWKAF87-Y0.37KW,EWKAF87-Y0.55KW,EWKAF87-Y0.75KW,EWKAF87-Y1.1KW,EWKAF87-Y1.5KW,EWKAF87-Y100M4,EWKAF87-Y112M4,EWKAF87-Y11KW,EWKAF87-Y132M4,EWKAF87-Y15KW,EWKAF87-Y160M4,EWKAF87-Y18.5KW,EWKAF87-Y180M4,EWKAF87-Y2.2KW,EWKAF87-Y200M4,EWKAF87-Y22KW,EWKAF87-Y3KW,EWKAF87-Y4KW,EWKAF87-Y5.5KW,EWKAF87-Y7.5KW,EWKAF87-Y71M4,EWKAF87-Y80M4,EWKAF87-Y90M4,EWKAF87-YEJ100M4,EWKAF87-YEJ112M4,EWKAF87-YEJ132M4,EWKAF87-YEJ160M4,EWKAF87-YEJ180M4,EWKAF87-YEJ200M4,EWKAF87-YEJ71M4,EWKAF87-YEJ80M4,EWKAF87-YEJ90M4,EWKAF87-YS100M4,EWKAF87-YS112M4,EWKAF87-YS132M4,EWKAF87-YS160M4,EWKAF87-YS180M4,EWKAF87-YS200M4,EWKAF87-YS71M4,EWKAF87-YS80M4,EWKAF87-YS90M4,EWKAF87-YVP100M4,EWKAF87-YVP112M4,EWKAF87-YVP132M4,EWKAF87-YVP160M4,EWKAF87-YVP180M4,EWKAF87-YVP200M4,EWKAF87-YVP71M4,EWKAF87-YVP80M4,EWKAF87-YVP90M4,EWKAF87-YVPEJ100M4,EWKAF87-YVPEJ112M4,EWKAF87-YVPEJ132M4,EWKAF87-YVPEJ160M4,EWKAF87-YVPEJ180M4,EWKAF87-YVPEJ200M4,EWKAF87-YVPEJ71M4,EWKAF87-YVPEJ80M4,EWKAF87-YVPEJ90M4,SLKAF87-Y0.37KW,SLKAF87-Y0.55KW,SLKAF87-Y0.75KW,SLKAF87-Y1.1KW,SLKAF87-Y1.5KW,SLKAF87-Y100M4,SLKAF87-Y112M4,SLKAF87-Y11KW,SLKAF87-Y132M4,SLKAF87-Y15KW,SLKAF87-Y160M4,SLKAF87-Y18.5KW,SLKAF87-Y180M4,SLKAF87-Y2.2KW,SLKAF87-Y200M4,SLKAF87-Y22KW,SLKAF87-Y3KW,SLKAF87-Y4KW,SLKAF87-Y5.5KW,SLKAF87-Y7.5KW,SLKAF87-Y71M4,SLKAF87-Y80M4,SLKAF87-Y90M4,SLKAF87-YEJ100M4,SLKAF87-YEJ112M4,SLKAF87-YEJ132M4,SLKAF87-YEJ160M4,SLKAF87-YEJ180M4,SLKAF87-YEJ200M4,SLKAF87-YEJ71M4,SLKAF87-YEJ80M4,SLKAF87-YEJ90M4,SLKAF87-YS100M4,SLKAF87-YS112M4,SLKAF87-YS132M4,SLKAF87-YS160M4,SLKAF87-YS180M4,SLKAF87-YS200M4,SLKAF87-YS71M4,SLKAF87-YS80M4,SLKAF87-YS90M4,SLKAF87-YVP100M4,SLKAF87-YVP112M4,SLKAF87-YVP132M4,SLKAF87-YVP160M4,SLKAF87-YVP180M4,SLKAF87-YVP200M4,SLKAF87-YVP71M4,SLKAF87-YVP80M4,SLKAF87-YVP90M4,SLKAF87-YVPEJ100M4,SLKAF87-YVPEJ112M4,SLKAF87-YVPEJ132M4,SLKAF87-YVPEJ160M4,SLKAF87-YVPEJ180M4,SLKAF87-YVPEJ200M4,SLKAF87-YVPEJ71M4,SLKAF87-YVPEJ80M4,SLKAF87-YVPEJ90M4,DSZKAF87-Y0.37KW,DSZKAF87-Y0.55KW,DSZKAF87-Y0.75KW,DSZKAF87-Y1.1KW,DSZKAF87-Y1.5KW,DSZKAF87-Y100M4,DSZKAF87-Y112M4,DSZKAF87-Y11KW,DSZKAF87-Y132M4,DSZKAF87-Y15KW,DSZKAF87-Y160M4,DSZKAF87-Y18.5KW,DSZKAF87-Y180M4,DSZKAF87-Y2.2KW,DSZKAF87-Y200M4,DSZKAF87-Y22KW,DSZKAF87-Y3KW,DSZKAF87-Y4KW,DSZKAF87-Y5.5KW,DSZKAF87-Y7.5KW,DSZKAF87-Y71M4,DSZKAF87-Y80M4,DSZKAF87-Y90M4,DSZKAF87-YEJ100M4,DSZKAF87-YEJ112M4,DSZKAF87-YEJ132M4,DSZKAF87-YEJ160M4,DSZKAF87-YEJ180M4,DSZKAF87-YEJ200M4,DSZKAF87-YEJ71M4,DSZKAF87-YEJ80M4,DSZKAF87-YEJ90M4,DSZKAF87-YS100M4,DSZKAF87-YS112M4,DSZKAF87-YS132M4,DSZKAF87-YS160M4,DSZKAF87-YS180M4,DSZKAF87-YS200M4,DSZKAF87-YS71M4,DSZKAF87-YS80M4,DSZKAF87-YS90M4,DSZKAF87-YVP100M4,DSZKAF87-YVP112M4,DSZKAF87-YVP132M4,DSZKAF87-YVP160M4,DSZKAF87-YVP180M4,DSZKAF87-YVP200M4,DSZKAF87-YVP71M4,DSZKAF87-YVP80M4,DSZKAF87-YVP90M4,DSZKAF87-YVPEJ100M4,DSZKAF87-YVPEJ112M4,DSZKAF87-YVPEJ132M4,DSZKAF87-YVPEJ160M4,DSZKAF87-YVPEJ180M4,DSZKAF87-YVPEJ200M4,DSZKAF87-YVPEJ71M4,DSZKAF87-YVPEJ80M4,DSZKAF87-YVPEJ90M4,BKAF87-Y0.37KW,BKAF87-Y0.55KW,BKAF87-Y0.75KW,BKAF87-Y1.1KW,BKAF87-Y1.5KW,BKAF87-Y100M4,BKAF87-Y112M4,BKAF87-Y11KW,BKAF87-Y132M4,BKAF87-Y15KW,BKAF87-Y160M4,BKAF87-Y18.5KW,BKAF87-Y180M4,BKAF87-Y2.2KW,BKAF87-Y200M4,BKAF87-Y22KW,BKAF87-Y3KW,BKAF87-Y4KW,BKAF87-Y5.5KW,BKAF87-Y7.5KW,BKAF87-Y71M4,BKAF87-Y80M4,BKAF87-Y90M4,BKAF87-YEJ100M4,BKAF87-YEJ112M4,BKAF87-YEJ132M4,BKAF87-YEJ160M4,BKAF87-YEJ180M4,BKAF87-YEJ200M4,BKAF87-YEJ71M4,BKAF87-YEJ80M4,BKAF87-YEJ90M4,BKAF87-YS100M4,BKAF87-YS112M4,BKAF87-YS132M4,BKAF87-YS160M4,BKAF87-YS180M4,BKAF87-YS200M4,BKAF87-YS71M4,BKAF87-YS80M4,BKAF87-YS90M4,BKAF87-YVP100M4,BKAF87-YVP112M4,BKAF87-YVP132M4,BKAF87-YVP160M4,BKAF87-YVP180M4,BKAF87-YVP200M4,BKAF87-YVP71M4,BKAF87-YVP80M4,BKAF87-YVP90M4,BKAF87-YVPEJ100M4,BKAF87-YVPEJ112M4,BKAF87-YVPEJ132M4,BKAF87-YVPEJ160M4,BKAF87-YVPEJ180M4,BKAF87-YVPEJ200M4,BKAF87-YVPEJ71M4,BKAF87-YVPEJ80M4,BKAF87-YVPEJ90M4,GKAF87-Y0.37KW,GKAF87-Y0.55KW,GKAF87-Y0.75KW,GKAF87-Y1.1KW,GKAF87-Y1.5KW,GKAF87-Y100M4,GKAF87-Y112M4,GKAF87-Y11KW,GKAF87-Y132M4,GKAF87-Y15KW,GKAF87-Y160M4,GKAF87-Y18.5KW,GKAF87-Y180M4,GKAF87-Y2.2KW,GKAF87-Y200M4,GKAF87-Y22KW,GKAF87-Y3KW,GKAF87-Y4KW,GKAF87-Y5.5KW,GKAF87-Y7.5KW,GKAF87-Y71M4,GKAF87-Y80M4,GKAF87-Y90M4,GKAF87-YEJ100M4,GKAF87-YEJ112M4,GKAF87-YEJ132M4,GKAF87-YEJ160M4,GKAF87-YEJ180M4,GKAF87-YEJ200M4,GKAF87-YEJ71M4,GKAF87-YEJ80M4,GKAF87-YEJ90M4,GKAF87-YS100M4,GKAF87-YS112M4,GKAF87-YS132M4,GKAF87-YS160M4,GKAF87-YS180M4,GKAF87-YS200M4,GKAF87-YS71M4,GKAF87-YS80M4,GKAF87-YS90M4,GKAF87-YVP100M4,GKAF87-YVP112M4,GKAF87-YVP132M4,GKAF87-YVP160M4,GKAF87-YVP180M4,GKAF87-YVP200M4,GKAF87-YVP71M4,GKAF87-YVP80M4,GKAF87-YVP90M4,GKAF87-YVPEJ100M4,GKAF87-YVPEJ112M4,GKAF87-YVPEJ132M4,GKAF87-YVPEJ160M4,GKAF87-YVPEJ180M4,GKAF87-YVPEJ200M4,GKAF87-YVPEJ71M4,GKAF87-YVPEJ80M4,GKAF87-YVPEJ90M4,KCAF87-Y0.37KW,KCAF87-Y0.55KW,KCAF87-Y0.75KW,KCAF87-Y1.1KW,KCAF87-Y1.5KW,KCAF87-Y100M4,KCAF87-Y112M4,KCAF87-Y11KW,KCAF87-Y132M4,KCAF87-Y15KW,KCAF87-Y160M4,KCAF87-Y18.5KW,KCAF87-Y180M4,KCAF87-Y2.2KW,KCAF87-Y200M4,KCAF87-Y22KW,KCAF87-Y3KW,KCAF87-Y4KW,KCAF87-Y5.5KW,KCAF87-Y7.5KW,KCAF87-Y71M4,KCAF87-Y80M4,KCAF87-Y90M4,KCAF87-YEJ100M4,KCAF87-YEJ112M4,KCAF87-YEJ132M4,KCAF87-YEJ160M4,KCAF87-YEJ180M4,KCAF87-YEJ200M4,KCAF87-YEJ71M4,KCAF87-YEJ80M4,KCAF87-YEJ90M4,KCAF87-YS100M4,KCAF87-YS112M4,KCAF87-YS132M4,KCAF87-YS160M4,KCAF87-YS180M4,KCAF87-YS200M4,KCAF87-YS71M4,KCAF87-YS80M4,KCAF87-YS90M4,KCAF87-YVP100M4,KCAF87-YVP112M4,KCAF87-YVP132M4,KCAF87-YVP160M4,KCAF87-YVP180M4,KCAF87-YVP200M4,KCAF87-YVP71M4,KCAF87-YVP80M4,KCAF87-YVP90M4,KCAF87-YVPEJ100M4,KCAF87-YVPEJ112M4,KCAF87-YVPEJ132M4,KCAF87-YVPEJ160M4,KCAF87-YVPEJ180M4,KCAF87-YVPEJ200M4,KCAF87-YVPEJ71M4,KCAF87-YVPEJ80M4,KCAF87-YVPEJ90M4,MTJAF87-Y0.37KW,MTJAF87-Y0.55KW,MTJAF87-Y0.75KW,MTJAF87-Y1.1KW,MTJAF87-Y1.5KW,MTJAF87-Y100M4,MTJAF87-Y112M4,MTJAF87-Y11KW,MTJAF87-Y132M4,MTJAF87-Y15KW,MTJAF87-Y160M4,MTJAF87-Y18.5KW,MTJAF87-Y180M4,MTJAF87-Y2.2KW,MTJAF87-Y200M4,MTJAF87-Y22KW,MTJAF87-Y3KW,MTJAF87-Y4KW,MTJAF87-Y5.5KW,MTJAF87-Y7.5KW,MTJAF87-Y71M4,MTJAF87-Y80M4,MTJAF87-Y90M4,MTJAF87-YEJ100M4,MTJAF87-YEJ112M4,MTJAF87-YEJ132M4,MTJAF87-YEJ160M4,MTJAF87-YEJ180M4,MTJAF87-YEJ200M4,MTJAF87-YEJ71M4,MTJAF87-YEJ80M4,MTJAF87-YEJ90M4,MTJAF87-YS100M4,MTJAF87-YS112M4,MTJAF87-YS132M4,MTJAF87-YS160M4,MTJAF87-YS180M4,MTJAF87-YS200M4,MTJAF87-YS71M4,MTJAF87-YS80M4,MTJAF87-YS90M4,MTJAF87-YVP100M4,MTJAF87-YVP112M4,MTJAF87-YVP132M4,MTJAF87-YVP160M4,MTJAF87-YVP180M4,MTJAF87-YVP200M4,MTJAF87-YVP71M4,MTJAF87-YVP80M4,MTJAF87-YVP90M4,MTJAF87-YVPEJ100M4,MTJAF87-YVPEJ112M4,MTJAF87-YVPEJ132M4,MTJAF87-YVPEJ160M4,MTJAF87-YVPEJ180M4,MTJAF87-YVPEJ200M4,MTJAF87-YVPEJ71M4,MTJAF87-YVPEJ80M4,MTJAF87-YVPEJ90M4,WXKAF87-WSS0.37KW,WXKAF87-WSS0.55KW,WXKAF87-WSS0.75KW,WXKAF87-WSS1.1KW,WXKAF87-WSS1.5KW,WXKAF87-WSS100M4,WXKAF87-WSS112M4,WXKAF87-WSS11KW,WXKAF87-WSS132M4,WXKAF87-WSS15KW,WXKAF87-WSS160M4,WXKAF87-WSS18.5KW,WXKAF87-WSS180M4,WXKAF87-WSS2.2KW,WXKAF87-WSS200M4,WXKAF87-WSS22KW,WXKAF87-WSS3KW,WXKAF87-WSS4KW,WXKAF87-WSS5.5KW,WXKAF87-WSS7.5KW,WXKAF87-WSS71M4,WXKAF87-WSS80M4,WXKAF87-WSS90M4,WXKAF87-WSSB100M4,WXKAF87-WSSB112M4,WXKAF87-WSSB132M4,WXKAF87-WSSB160M4,WXKAF87-WSSB180M4,WXKAF87-WSSB200M4,WXKAF87-WSSB71M4,WXKAF87-WSSB80M4,WXKAF87-WSSB90M4,WXKAF87-WSSVP100M4,WXKAF87-WSSVP112M4,WXKAF87-WSSVP132M4,WXKAF87-WSSVP160M4,WXKAF87-WSSVP180M4,WXKAF87-WSSVP200M4,WXKAF87-WSSVP71M4,WXKAF87-WSSVP80M4,WXKAF87-WSSVP90M4,WXKAF87-WSSVPB100M4,WXKAF87-WSSVPB112M4,WXKAF87-WSSVPB132M4,WXKAF87-WSSVPB160M4,WXKAF87-WSSVPB180M4,WXKAF87-WSSVPB200M4,WXKAF87-WSSVPB71M4,WXKAF87-WSSVPB80M4,WXKAF87-WSSVPB90M4。二級減速機
