FA87減速機重量：FA87減速機重量149公斤，F(xiàn)A87減速機與電機重量分別如下

FA87減速機與1.1KW電機重量169公斤，F(xiàn)A87減速機與1.5KW電機重量172公斤，F(xiàn)A87減速機與2.2KW電機重量181公斤，F(xiàn)A87減速機與3KW電機重量187公斤，F(xiàn)A87減速機與4KW電機重量195公斤，F(xiàn)A87減速機與5.5KW電機重量209公斤，F(xiàn)A87減速機與7.5KW電機重量222公斤，F(xiàn)A87減速機與11KW電機重量264公斤，F(xiàn)A87減速機與15KW電機重量284公斤，F(xiàn)A87減速機與18.5KW電機重量321公斤，F(xiàn)A87減速機與22KW電機重量334公斤。分體減速機電機

FA87減速機加油量：可加齒輪油

FA87減速機M3安裝方式加7.7L，F(xiàn)A87減速機M2安裝方式加13L，F(xiàn)A87減速機M1安裝方式加10.8L，F(xiàn)A87減速機M4安裝方式加13.8L，F(xiàn)A87減速機M5安裝方式加10.8L，F(xiàn)A87減速機M6安裝方式加11L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整方式安裝時，您必須根據改變后的方式安裝相應調整加注潤滑劑。上述中列出了方式安裝M1-M6的減速機相應的標準參考潤滑油注入量值。

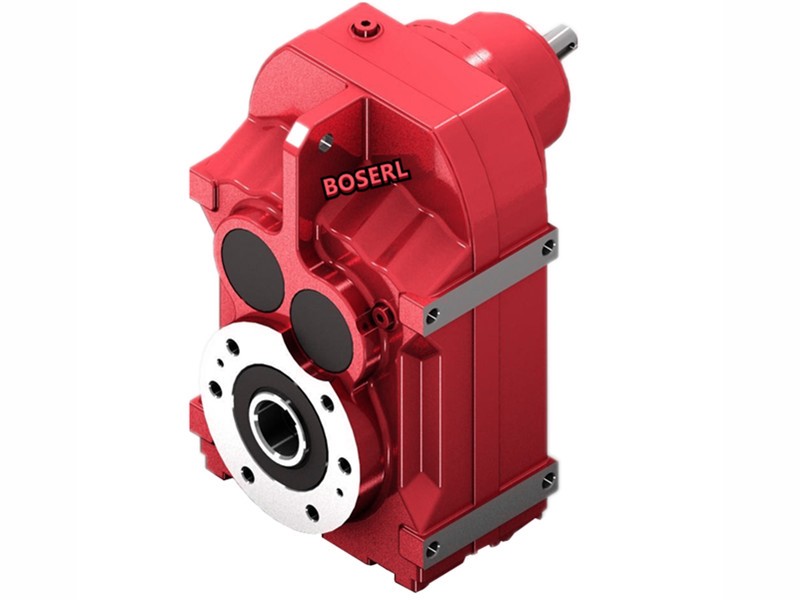

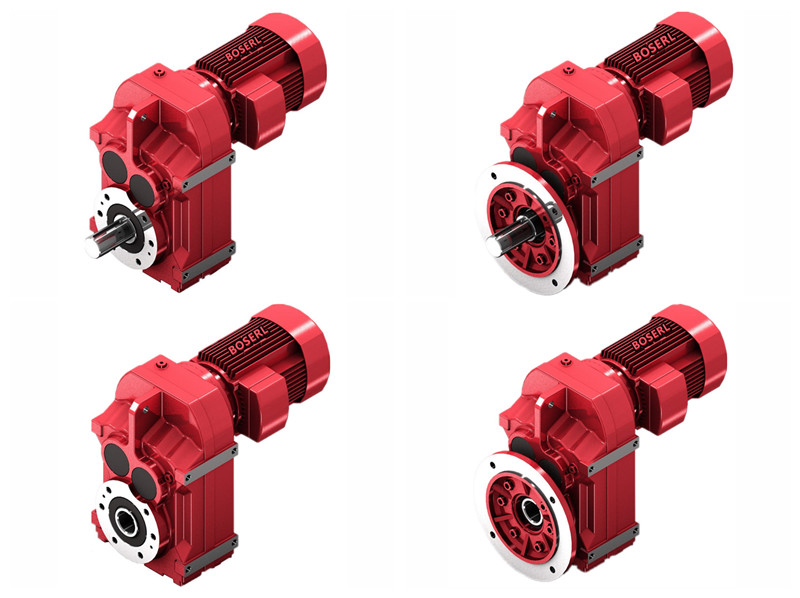

FA87減速機實物圖：圖一為FA87臥式孔輸出平行軸減速機，圖二F87底腳安裝方式軸輸出平行軸減速機，圖三為FF87立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FAF87立式法蘭孔輸出平行軸斜齒輪減速機。

FA87減速機型號表示方法：

FA87減速機型號結構FA87-B15KW-4P-減速比-安裝方式-接線盒位置。

FA87減速機性能參數表結構說明：HR手動釋放裝置，HF手動釋放裝置與自鎖功能，F(xiàn)A87，F(xiàn)87，F(xiàn)F87，F(xiàn)AF87減速機機座號，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FA87減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1安裝方式，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。可提供S和N兩種進線方位，其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。齒輪減速機

FA87減速機參數：

FA87減速機減速比1:270，1:255，1:228，1:197，1:179，1:159，1:134，1:123，1:109，1:97，1:88，1:76，1:68，1:56，1:50，1:45，1:39，1:35，1:29，1:33，1:28，1:26，1:23，1:21，1:19，1:17，1:15，1:13，1:11，1:9，1:8，1:7，1:6，1:5，1:4

FA87減速機輸出轉數5.2轉，5.5轉，6.1轉，7.1轉，7.8轉，8.8轉，10轉，11轉，13轉，14轉，16轉，18轉，20轉，25轉，28轉，31轉，36轉，40轉，48轉，49轉，53轉，59轉，66轉，73轉，82轉，90轉，107轉，122轉，146轉，169轉，190轉，211轉，249轉，285轉，340轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FA87減速機電機可與直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FA87與0.55KW，F(xiàn)A87與0.75KW，F(xiàn)A87與1.1KW，F(xiàn)A87與1.5KW，F(xiàn)A87與2.2KW，F(xiàn)A87與3KW，F(xiàn)A87與4KW，F(xiàn)A87與5.5KW，F(xiàn)A87與7.5KW，F(xiàn)A87與11KW，F(xiàn)A87與15KW，F(xiàn)A87與18.5KW，F(xiàn)A87與22KW。

FA87減速機輸出扭矩3000N.m，2940N.m，2880N.m，2820N.m，2720N.m，2610N.m，2510N.m，2450N.m，1530N.m，1460N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

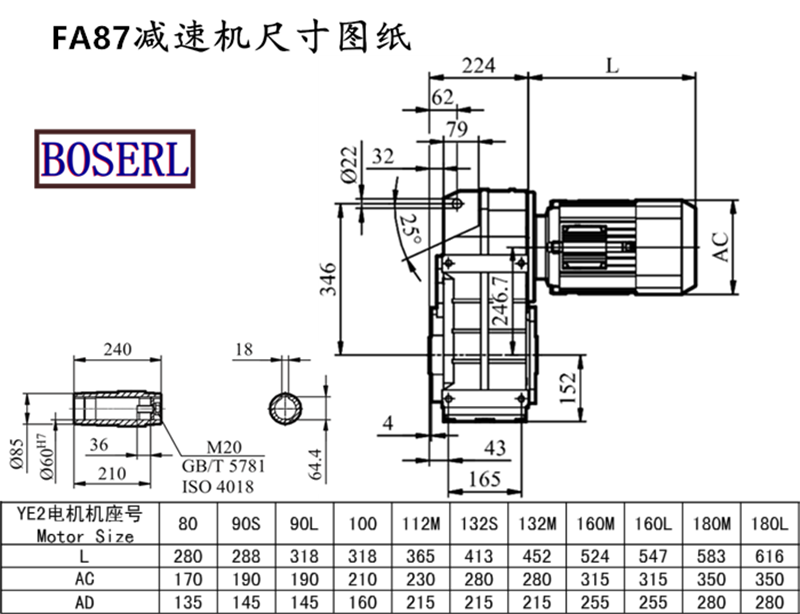

FA87減速機安裝尺寸：高531*寬330*長344

FA87減速機型號：

FA87AQA80,FA87AQA100,FA87AQA115,FA87AQA140,FA87AQA160,FA87AQA190,FA87AQH80,FA87AQH100,FA87AQH115,FA87AQH140,FA87AQH160,FA87AQH190,JRTFA87-Y0.37KW,JRTFA87-Y0.55KW,JRTFA87-Y0.75KW,JRTFA87-Y1.1KW,JRTFA87-Y1.5KW,JRTFA87-Y100M4,JRTFA87-Y112M4,JRTFA87-Y11KW,JRTFA87-Y132M4,JRTFA87-Y15KW,JRTFA87-Y160M4,JRTFA87-Y18.5KW,JRTFA87-Y180M4,JRTFA87-Y2.2KW,JRTFA87-Y200M4,JRTFA87-Y22KW,JRTFA87-Y3KW,JRTFA87-Y4KW,JRTFA87-Y5.5KW,JRTFA87-Y7.5KW,JRTFA87-Y71M4,JRTFA87-Y80M4,JRTFA87-Y90M4,JRTFA87-YEJ100M4,JRTFA87-YEJ112M4,JRTFA87-YEJ132M4,JRTFA87-YEJ160M4,JRTFA87-YEJ180M4,JRTFA87-YEJ200M4,JRTFA87-YEJ71M4,JRTFA87-YEJ80M4,JRTFA87-YEJ90M4,JRTFA87-YS100M4,JRTFA87-YS112M4,JRTFA87-YS132M4,JRTFA87-YS160M4,JRTFA87-YS180M4,JRTFA87-YS200M4,JRTFA87-YS71M4,JRTFA87-YS80M4,JRTFA87-YS90M4,JRTFA87-YVP100M4,JRTFA87-YVP112M4,JRTFA87-YVP132M4,JRTFA87-YVP160M4,JRTFA87-YVP180M4,JRTFA87-YVP200M4,JRTFA87-YVP71M4,JRTFA87-YVP80M4,JRTFA87-YVP90M4,JRTFA87-YVPEJ100M4,JRTFA87-YVPEJ112M4,JRTFA87-YVPEJ132M4,JRTFA87-YVPEJ160M4,JRTFA87-YVPEJ180M4,JRTFA87-YVPEJ200M4,JRTFA87-YVPEJ71M4,JRTFA87-YVPEJ80M4,JRTFA87-YVPEJ90M4,EWFA87-Y0.37KW,EWFA87-Y0.55KW,EWFA87-Y0.75KW,EWFA87-Y1.1KW,EWFA87-Y1.5KW,EWFA87-Y100M4,EWFA87-Y112M4,EWFA87-Y11KW,EWFA87-Y132M4,EWFA87-Y15KW,EWFA87-Y160M4,EWFA87-Y18.5KW,EWFA87-Y180M4,EWFA87-Y2.2KW,EWFA87-Y200M4,EWFA87-Y22KW,EWFA87-Y3KW,EWFA87-Y4KW,EWFA87-Y5.5KW,EWFA87-Y7.5KW,EWFA87-Y71M4,EWFA87-Y80M4,EWFA87-Y90M4,EWFA87-YEJ100M4,EWFA87-YEJ112M4,EWFA87-YEJ132M4,EWFA87-YEJ160M4,EWFA87-YEJ180M4,EWFA87-YEJ200M4,EWFA87-YEJ71M4,EWFA87-YEJ80M4,EWFA87-YEJ90M4,EWFA87-YS100M4,EWFA87-YS112M4,EWFA87-YS132M4,EWFA87-YS160M4,EWFA87-YS180M4,EWFA87-YS200M4,EWFA87-YS71M4,EWFA87-YS80M4,EWFA87-YS90M4,EWFA87-YVP100M4,EWFA87-YVP112M4,EWFA87-YVP132M4,EWFA87-YVP160M4,EWFA87-YVP180M4,EWFA87-YVP200M4,EWFA87-YVP71M4,EWFA87-YVP80M4,EWFA87-YVP90M4,EWFA87-YVPEJ100M4,EWFA87-YVPEJ112M4,EWFA87-YVPEJ132M4,EWFA87-YVPEJ160M4,EWFA87-YVPEJ180M4,EWFA87-YVPEJ200M4,EWFA87-YVPEJ71M4,EWFA87-YVPEJ80M4,EWFA87-YVPEJ90M4,SLFA87-Y0.37KW,SLFA87-Y0.55KW,SLFA87-Y0.75KW,SLFA87-Y1.1KW,SLFA87-Y1.5KW,SLFA87-Y100M4,SLFA87-Y112M4,SLFA87-Y11KW,SLFA87-Y132M4,SLFA87-Y15KW,SLFA87-Y160M4,SLFA87-Y18.5KW,SLFA87-Y180M4,SLFA87-Y2.2KW,SLFA87-Y200M4,SLFA87-Y22KW,SLFA87-Y3KW,SLFA87-Y4KW,SLFA87-Y5.5KW,SLFA87-Y7.5KW,SLFA87-Y71M4,SLFA87-Y80M4,SLFA87-Y90M4,SLFA87-YEJ100M4,SLFA87-YEJ112M4,SLFA87-YEJ132M4,SLFA87-YEJ160M4,SLFA87-YEJ180M4,SLFA87-YEJ200M4,SLFA87-YEJ71M4,SLFA87-YEJ80M4,SLFA87-YEJ90M4,SLFA87-YS100M4,SLFA87-YS112M4,SLFA87-YS132M4,SLFA87-YS160M4,SLFA87-YS180M4,SLFA87-YS200M4,SLFA87-YS71M4,SLFA87-YS80M4,SLFA87-YS90M4,SLFA87-YVP100M4,SLFA87-YVP112M4,SLFA87-YVP132M4,SLFA87-YVP160M4,SLFA87-YVP180M4,SLFA87-YVP200M4,SLFA87-YVP71M4,SLFA87-YVP80M4,SLFA87-YVP90M4,SLFA87-YVPEJ100M4,SLFA87-YVPEJ112M4,SLFA87-YVPEJ132M4,SLFA87-YVPEJ160M4,SLFA87-YVPEJ180M4,SLFA87-YVPEJ200M4,SLFA87-YVPEJ71M4,SLFA87-YVPEJ80M4,SLFA87-YVPEJ90M4,DSZFA87-Y0.37KW,DSZFA87-Y0.55KW,DSZFA87-Y0.75KW,DSZFA87-Y1.1KW,DSZFA87-Y1.5KW,DSZFA87-Y100M4,DSZFA87-Y112M4,DSZFA87-Y11KW,DSZFA87-Y132M4,DSZFA87-Y15KW,DSZFA87-Y160M4,DSZFA87-Y18.5KW,DSZFA87-Y180M4,DSZFA87-Y2.2KW,DSZFA87-Y200M4,DSZFA87-Y22KW,DSZFA87-Y3KW,DSZFA87-Y4KW,DSZFA87-Y5.5KW,DSZFA87-Y7.5KW,DSZFA87-Y71M4,DSZFA87-Y80M4,DSZFA87-Y90M4,DSZFA87-YEJ100M4,DSZFA87-YEJ112M4,DSZFA87-YEJ132M4,DSZFA87-YEJ160M4,DSZFA87-YEJ180M4,DSZFA87-YEJ200M4,DSZFA87-YEJ71M4,DSZFA87-YEJ80M4,DSZFA87-YEJ90M4,DSZFA87-YS100M4,DSZFA87-YS112M4,DSZFA87-YS132M4,DSZFA87-YS160M4,DSZFA87-YS180M4,DSZFA87-YS200M4,DSZFA87-YS71M4,DSZFA87-YS80M4,DSZFA87-YS90M4,DSZFA87-YVP100M4,DSZFA87-YVP112M4,DSZFA87-YVP132M4,DSZFA87-YVP160M4,DSZFA87-YVP180M4,DSZFA87-YVP200M4,DSZFA87-YVP71M4,DSZFA87-YVP80M4,DSZFA87-YVP90M4,DSZFA87-YVPEJ100M4,DSZFA87-YVPEJ112M4,DSZFA87-YVPEJ132M4,DSZFA87-YVPEJ160M4,DSZFA87-YVPEJ180M4,DSZFA87-YVPEJ200M4,DSZFA87-YVPEJ71M4,DSZFA87-YVPEJ80M4,DSZFA87-YVPEJ90M4,BFA87-Y0.37KW,BFA87-Y0.55KW,BFA87-Y0.75KW,BFA87-Y1.1KW,BFA87-Y1.5KW,BFA87-Y100M4,BFA87-Y112M4,BFA87-Y11KW,BFA87-Y132M4,BFA87-Y15KW,BFA87-Y160M4,BFA87-Y18.5KW,BFA87-Y180M4,BFA87-Y2.2KW,BFA87-Y200M4,BFA87-Y22KW,BFA87-Y3KW,BFA87-Y4KW,BFA87-Y5.5KW,BFA87-Y7.5KW,BFA87-Y71M4,BFA87-Y80M4,BFA87-Y90M4,BFA87-YEJ100M4,BFA87-YEJ112M4,BFA87-YEJ132M4,BFA87-YEJ160M4,BFA87-YEJ180M4,BFA87-YEJ200M4,BFA87-YEJ71M4,BFA87-YEJ80M4,BFA87-YEJ90M4,BFA87-YS100M4,BFA87-YS112M4,BFA87-YS132M4,BFA87-YS160M4,BFA87-YS180M4,BFA87-YS200M4,BFA87-YS71M4,BFA87-YS80M4,BFA87-YS90M4,BFA87-YVP100M4,BFA87-YVP112M4,BFA87-YVP132M4,BFA87-YVP160M4,BFA87-YVP180M4,BFA87-YVP200M4,BFA87-YVP71M4,BFA87-YVP80M4,BFA87-YVP90M4,BFA87-YVPEJ100M4,BFA87-YVPEJ112M4,BFA87-YVPEJ132M4,BFA87-YVPEJ160M4,BFA87-YVPEJ180M4,BFA87-YVPEJ200M4,BFA87-YVPEJ71M4,BFA87-YVPEJ80M4,BFA87-YVPEJ90M4,GFA87-Y0.37KW,GFA87-Y0.55KW,GFA87-Y0.75KW,GFA87-Y1.1KW,GFA87-Y1.5KW,GFA87-Y100M4,GFA87-Y112M4,GFA87-Y11KW,GFA87-Y132M4,GFA87-Y15KW,GFA87-Y160M4,GFA87-Y18.5KW,GFA87-Y180M4,GFA87-Y2.2KW,GFA87-Y200M4,GFA87-Y22KW,GFA87-Y3KW,GFA87-Y4KW,GFA87-Y5.5KW,GFA87-Y7.5KW,GFA87-Y71M4,GFA87-Y80M4,GFA87-Y90M4,GFA87-YEJ100M4,GFA87-YEJ112M4,GFA87-YEJ132M4,GFA87-YEJ160M4,GFA87-YEJ180M4,GFA87-YEJ200M4,GFA87-YEJ71M4,GFA87-YEJ80M4,GFA87-YEJ90M4,GFA87-YS100M4,GFA87-YS112M4,GFA87-YS132M4,GFA87-YS160M4,GFA87-YS180M4,GFA87-YS200M4,GFA87-YS71M4,GFA87-YS80M4,GFA87-YS90M4,GFA87-YVP100M4,GFA87-YVP112M4,GFA87-YVP132M4,GFA87-YVP160M4,GFA87-YVP180M4,GFA87-YVP200M4,GFA87-YVP71M4,GFA87-YVP80M4,GFA87-YVP90M4,GFA87-YVPEJ100M4,GFA87-YVPEJ112M4,GFA87-YVPEJ132M4,GFA87-YVPEJ160M4,GFA87-YVPEJ180M4,GFA87-YVPEJ200M4,GFA87-YVPEJ71M4,GFA87-YVPEJ80M4,GFA87-YVPEJ90M4,FCA87-Y0.37KW,FCA87-Y0.55KW,FCA87-Y0.75KW,FCA87-Y1.1KW,FCA87-Y1.5KW,FCA87-Y100M4,FCA87-Y112M4,FCA87-Y11KW,FCA87-Y132M4,FCA87-Y15KW,FCA87-Y160M4,FCA87-Y18.5KW,FCA87-Y180M4,FCA87-Y2.2KW,FCA87-Y200M4,FCA87-Y22KW,FCA87-Y3KW,FCA87-Y4KW,FCA87-Y5.5KW,FCA87-Y7.5KW,FCA87-Y71M4,FCA87-Y80M4,FCA87-Y90M4,FCA87-YEJ100M4,FCA87-YEJ112M4,FCA87-YEJ132M4,FCA87-YEJ160M4,FCA87-YEJ180M4,FCA87-YEJ200M4,FCA87-YEJ71M4,FCA87-YEJ80M4,FCA87-YEJ90M4,FCA87-YS100M4,FCA87-YS112M4,FCA87-YS132M4,FCA87-YS160M4,FCA87-YS180M4,FCA87-YS200M4,FCA87-YS71M4,FCA87-YS80M4,FCA87-YS90M4,FCA87-YVP100M4,FCA87-YVP112M4,FCA87-YVP132M4,FCA87-YVP160M4,FCA87-YVP180M4,FCA87-YVP200M4,FCA87-YVP71M4,FCA87-YVP80M4,FCA87-YVP90M4,FCA87-YVPEJ100M4,FCA87-YVPEJ112M4,FCA87-YVPEJ132M4,FCA87-YVPEJ160M4,FCA87-YVPEJ180M4,FCA87-YVPEJ200M4,FCA87-YVPEJ71M4,FCA87-YVPEJ80M4,FCA87-YVPEJ90M4,MTPA87-Y0.37KW,MTPA87-Y0.55KW,MTPA87-Y0.75KW,MTPA87-Y1.1KW,MTPA87-Y1.5KW,MTPA87-Y100M4,MTPA87-Y112M4,MTPA87-Y11KW,MTPA87-Y132M4,MTPA87-Y15KW,MTPA87-Y160M4,MTPA87-Y18.5KW,MTPA87-Y180M4,MTPA87-Y2.2KW,MTPA87-Y200M4,MTPA87-Y22KW,MTPA87-Y3KW,MTPA87-Y4KW,MTPA87-Y5.5KW,MTPA87-Y7.5KW,MTPA87-Y71M4,MTPA87-Y80M4,MTPA87-Y90M4,MTPA87-YEJ100M4,MTPA87-YEJ112M4,MTPA87-YEJ132M4,MTPA87-YEJ160M4,MTPA87-YEJ180M4,MTPA87-YEJ200M4,MTPA87-YEJ71M4,MTPA87-YEJ80M4,MTPA87-YEJ90M4,MTPA87-YS100M4,MTPA87-YS112M4,MTPA87-YS132M4,MTPA87-YS160M4,MTPA87-YS180M4,MTPA87-YS200M4,MTPA87-YS71M4,MTPA87-YS80M4,MTPA87-YS90M4,MTPA87-YVP100M4,MTPA87-YVP112M4,MTPA87-YVP132M4,MTPA87-YVP160M4,MTPA87-YVP180M4,MTPA87-YVP200M4,MTPA87-YVP71M4,MTPA87-YVP80M4,MTPA87-YVP90M4,MTPA87-YVPEJ100M4,MTPA87-YVPEJ112M4,MTPA87-YVPEJ132M4,MTPA87-YVPEJ160M4,MTPA87-YVPEJ180M4,MTPA87-YVPEJ200M4,MTPA87-YVPEJ71M4,MTPA87-YVPEJ80M4,MTPA87-YVPEJ90M4,WXFA87-WSS0.37KW,WXFA87-WSS0.55KW,WXFA87-WSS0.75KW,WXFA87-WSS1.1KW,WXFA87-WSS1.5KW,WXFA87-WSS100M4,WXFA87-WSS112M4,WXFA87-WSS11KW,WXFA87-WSS132M4,WXFA87-WSS15KW,WXFA87-WSS160M4,WXFA87-WSS18.5KW,WXFA87-WSS180M4,WXFA87-WSS2.2KW,WXFA87-WSS200M4,WXFA87-WSS22KW,WXFA87-WSS3KW,WXFA87-WSS4KW,WXFA87-WSS5.5KW,WXFA87-WSS7.5KW,WXFA87-WSS71M4,WXFA87-WSS80M4,WXFA87-WSS90M4,WXFA87-WSSB100M4,WXFA87-WSSB112M4,WXFA87-WSSB132M4,WXFA87-WSSB160M4,WXFA87-WSSB180M4,WXFA87-WSSB200M4,WXFA87-WSSB71M4,WXFA87-WSSB80M4,WXFA87-WSSB90M4,WXFA87-WSSVP100M4,WXFA87-WSSVP112M4,WXFA87-WSSVP132M4,WXFA87-WSSVP160M4,WXFA87-WSSVP180M4,WXFA87-WSSVP200M4,WXFA87-WSSVP71M4,WXFA87-WSSVP80M4,WXFA87-WSSVP90M4,WXFA87-WSSVPB100M4,WXFA87-WSSVPB112M4,WXFA87-WSSVPB132M4,WXFA87-WSSVPB160M4,WXFA87-WSSVPB180M4,WXFA87-WSSVPB200M4,WXFA87-WSSVPB71M4,WXFA87-WSSVPB80M4,WXFA87-WSSVPB90M4。

FA87減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.wwindo.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F87減速機
